Resin Carrier
Flexible synthetic fiber with PU coating (PAA-F-Liner) or GRP-carrier (PAA-GF-Liner)
Resin Systems
Styrene-free based on Vinylester (PAA-F-Liner or PAA-GF-Liner) or styrenated Polyester (PAA-GF-Liner)
Patent-protected photo-initiators developed for certified, approval- and standard-conform cure with Bluelight LED light-sources
Cure
LED technology in the wavelength of blue light (450nm)
Curing Speeds
0,30 – 1,65m/min (18-99m/h) depending upon type of liner, diameter, wall-thickness and light source
Installation
DN70 to DN600 Depending on product used either PAA-F or PAA-GF
Diameter changes: 2D and 3D possible depending on product Length: up to 100m in one line (in exceptions even longer)
Bends or elbows: depending on product up to 90 degrees. Open ends: possible with the use of a translucent inner silicone hose
Production
According to the standard EN ISO 9001

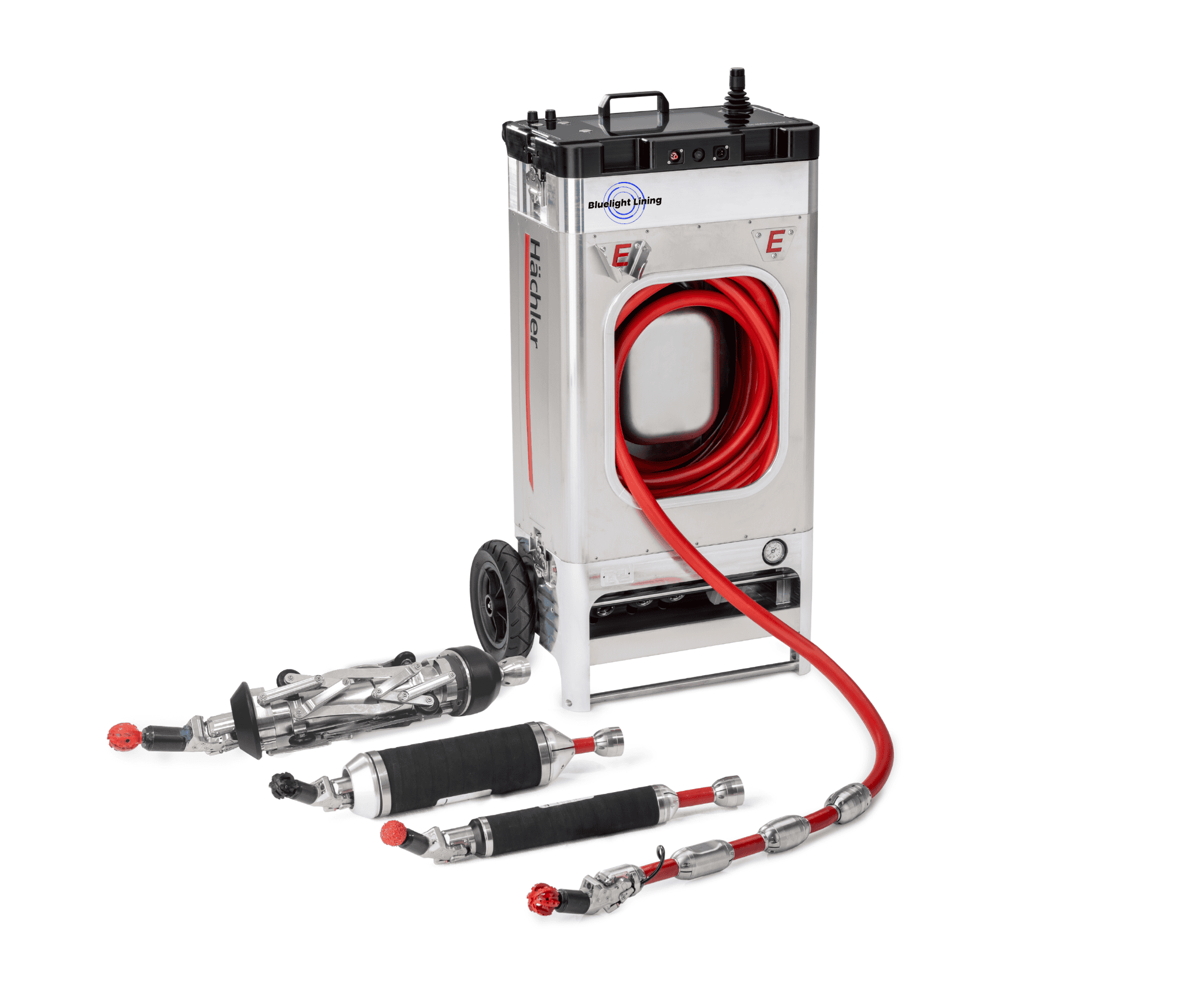

Bluelight LED Equipment
European patent: EP2 2 129 956 B1

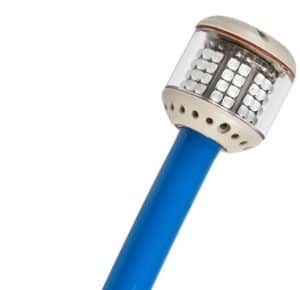

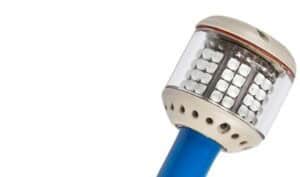

LED Head 64
Length of Pull-rod
15m
Diameter-Range
70mm – 100mm (F-Liner)
Input Power – 202.3W @LH
Output Power – 143W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 3.3cm
Width/Diameter of the light source – 3cm
Weight of the light source – 29g
Output power/weight – 4.9W/g
Number of diodes per light source – 64pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head
144
Length of Push-rod
40m
Diameter-Range
70mm – 150mm (PAA-F-Liner)
Input Power – 294.3W @ LH
Output Power – 223.9W
Efficiency at 50 degrees celsius – 69%
Length of the light source – 5.2cm
Width/Diameter of the light source – 4.1cm
Weight of the light source – 79g
Output power/weight – 2.7W/g
Number of diodes per light source – 144pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head 336-2
Length of Push-rod
40m
Diameter-Range
100mm – 200mm (F-Liner)
Input Power – 686.8W @ LH
Output Power – 522.5W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 6.5cm
Width/Diameter of the light source – 5.2cm
Weight of the light source – 165g
Output power/weight – 3.0W/g
Number of diodes per light source – 336pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º

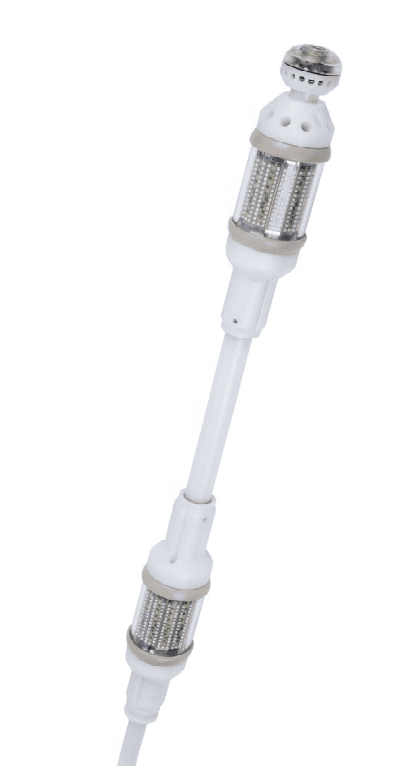

LED Head 696
Length of Push-rod
50m / 100m / 125m
Diameter-Range
100mm – 400mm (PAA-F-Liner)
150mm – 600mm (PAA-GF-Liner)
Input Power – 1,422.6W @ LH
Output Power – 1,082.3W
Efficiency at 50 degrees celsius – 66.7%
Length of the light source – 13.2cm
Width/Diameter of the light source – 5.2cm
Weight of the light source – 375g
Output power/weight – 2.8W/g
Number of diodes per light source – 696pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 to 457nm
Viewing angle – 120º
LED Head 2×348
Length of Pull-rod
125m
Diameter-Range
150mm – 600mm (PAA-GF-Liner)
Input Power – 1,422.6W @ LH
Output Power – 1082.3W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 72cm
Width/Diameter of the light source – 7.7cm
Weight of the light source – 2,200g
Output power/weight – 0.5W/g
Number of diodes per light source – 2 x 348pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head 64
Length of Pull-rod
15m
Diameter-Range
70mm – 100mm (F-Liner)
Input Power – 202.3W @LH
Output Power – 143W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 3.3cm
Width/Diameter of the light source – 3cm
Weight of the light source – 29g
Output power/weight – 4.9W/g
Number of diodes per light source – 64pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head
144
Length of Push-rod
40m
Diameter-Range
70mm – 150mm (PAA-F-Liner)
Input Power – 294.3W @ LH
Output Power – 223.9W
Efficiency at 50 degrees celsius – 69%
Length of the light source – 5.2cm
Width/Diameter of the light source – 4.1cm
Weight of the light source – 79g
Output power/weight – 2.7W/g
Number of diodes per light source – 144pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head 336-2
Length of Push-rod
40m
Diameter-Range
100mm – 200mm (F-Liner)
Input Power – 686.8W @ LH
Output Power – 522.5W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 6.5cm
Width/Diameter of the light source – 5.2cm
Weight of the light source – 165g
Output power/weight – 3.0W/g
Number of diodes per light source – 336pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º
LED Head 696
Length of Push-rod
50m / 100m / 125m
Diameter-Range
100mm – 400mm (PAA-F-Liner)
150mm – 600mm (PAA-GF-Liner)
Input Power – 1,422.6W @ LH
Output Power – 1,082.3W
Efficiency at 50 degrees celsius – 66.7%
Length of the light source – 13.2cm
Width/Diameter of the light source – 5.2cm
Weight of the light source – 375g
Output power/weight – 2.8W/g
Number of diodes per light source – 696pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 to 457nm
Viewing angle – 120º
LED Head 2×348
Length of Pull-rod
125m
Diameter-Range
150mm – 600mm (PAA-GF-Liner)
Input Power – 1,422.6W @ LH
Output Power – 1082.3W
Efficiency at 50 degrees celsius – 76%
Length of the light source – 72cm
Width/Diameter of the light source – 7.7cm
Weight of the light source – 2,200g
Output power/weight – 0.5W/g
Number of diodes per light source – 2 x 348pcs
Manufacturer diodes – Osram
Operating temperature diode – -40 to 125ºC
Junction temperature of absolute diode – 135ºC
Wavelength – 444 – 457nm
Viewing angle – 120º

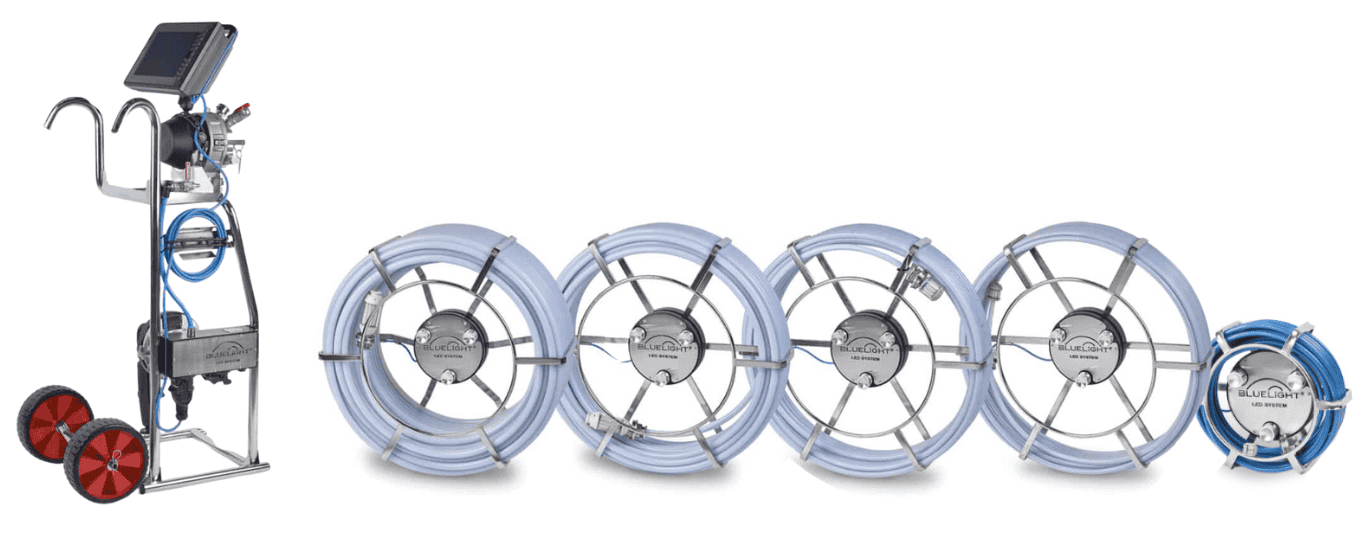

CIPP lining systems available
- PAA-F-Liner standard, DIA100-400mm, flexible liner based on synthetic fibre with PU-coating, to be used in laterals or inside buildings, mains styrene-free VE-resin, one diameter expansion possible, inversion-process, more than 700km have been installed throughout Europe.
- PAA-F-Liner 3D, DIA100-150mm, DIA150-225mm, DIA225-300mm flexible liner based on synthetic fleece with high radial expansion and PU-coating, to be used in laterals or inside buildings, styrene-free VE- resin, diameter expansion possible from 100mm to 150mm, 150mm to 225mm, 225mm to 300mm inversion-process.
- PAA-GF-Liner LED, DIA150-600mm, non flexible grp-liner for mainly straight lines, styrene-free VE-resin, no diameter changes possible, pull-in-process.
Documentation of curing parameters
- Liner installation is two to fives times more efficient
- Possibility to check the liner before curing using the integrated camera on the LED head
- Storage of up to 3 months for PAA-F impregnated liners and 12 months for PAA-GF impregnated liners
- Fully automated quality assurance and documentation of all relevant parameters
- Instruction manual including definitions of all procedure steps
- Low space requirement for the installation equipment with maximum equipment mobility
- Fully software controlled system technology
- Reduction of error potential compared with multi-component systems
- Maximum flexibility thanks to a choice of impregnating on site or using pre impregnated materials
- User support by a global player in trenchless renovation of drainage systems; remote maintenance and remote sessions are possible
- Less waste (re-usable silicone calibration hoses) excess resins from impregnation can be re-used
